Metroview® Channel balustrades
Metroview® Channel glass balustrades offer wider, unobstructed views

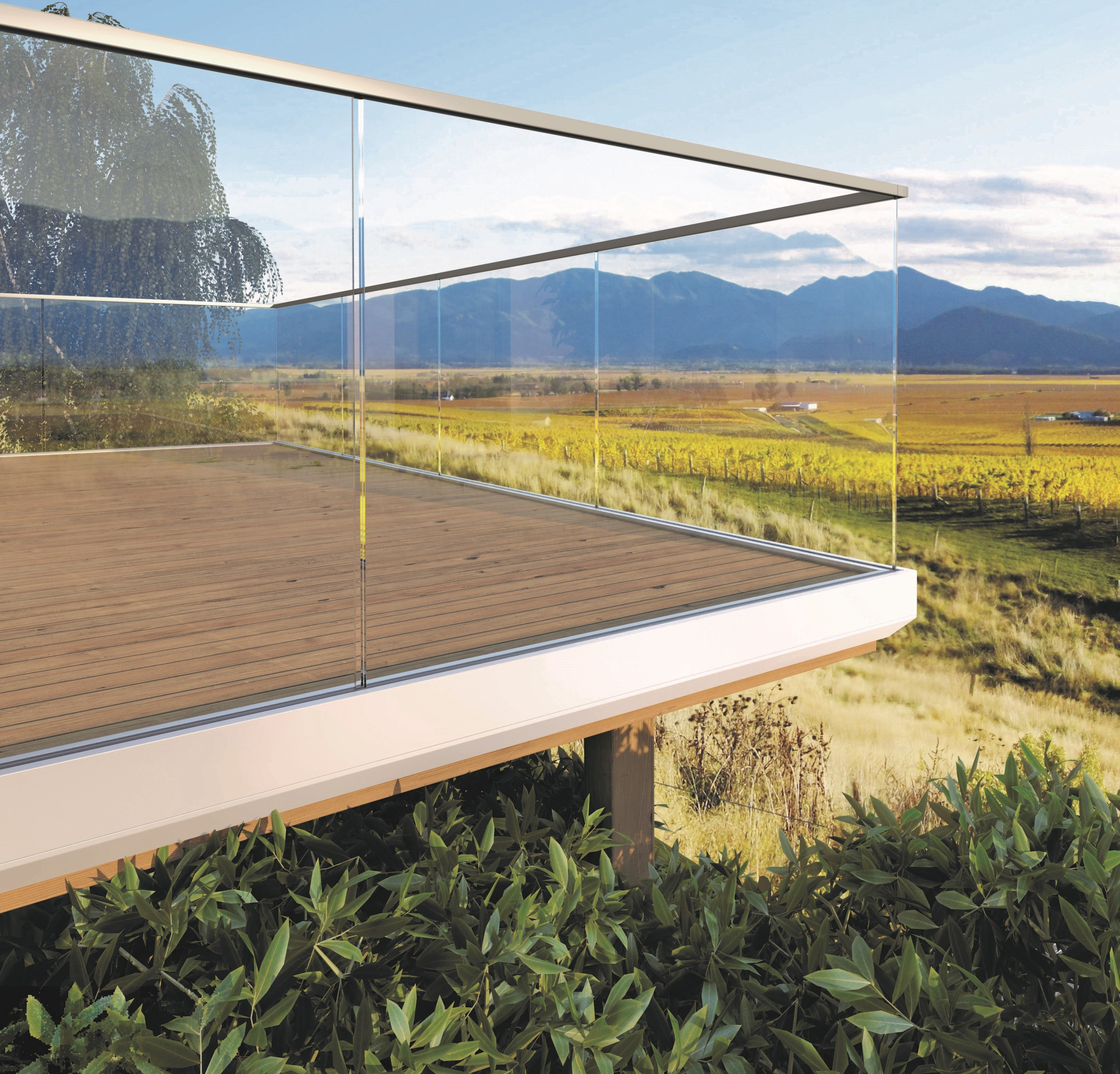

The balustrade hardware can be concealed within the surrounding cladding to obtain a "floating" aesthetic

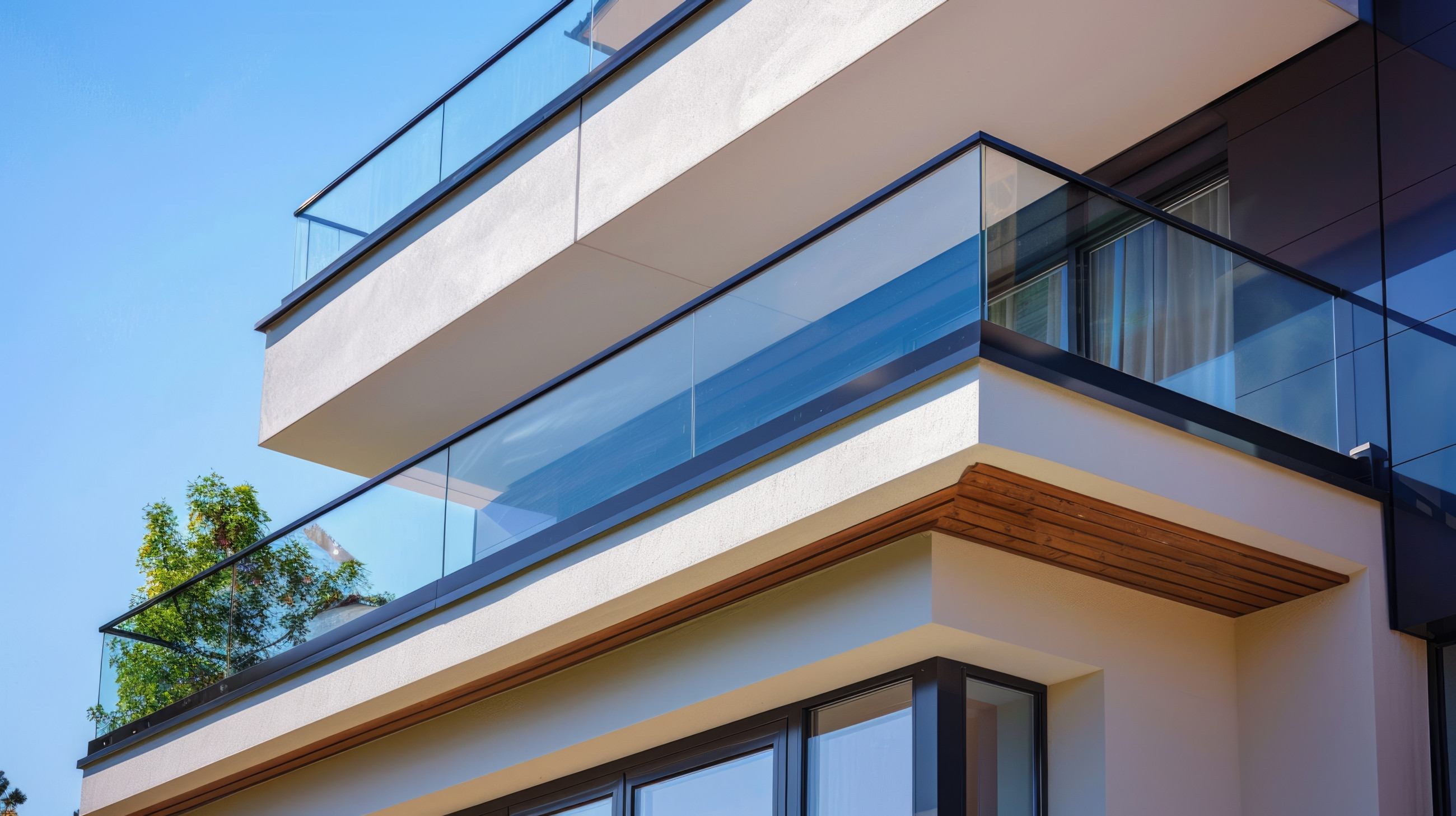

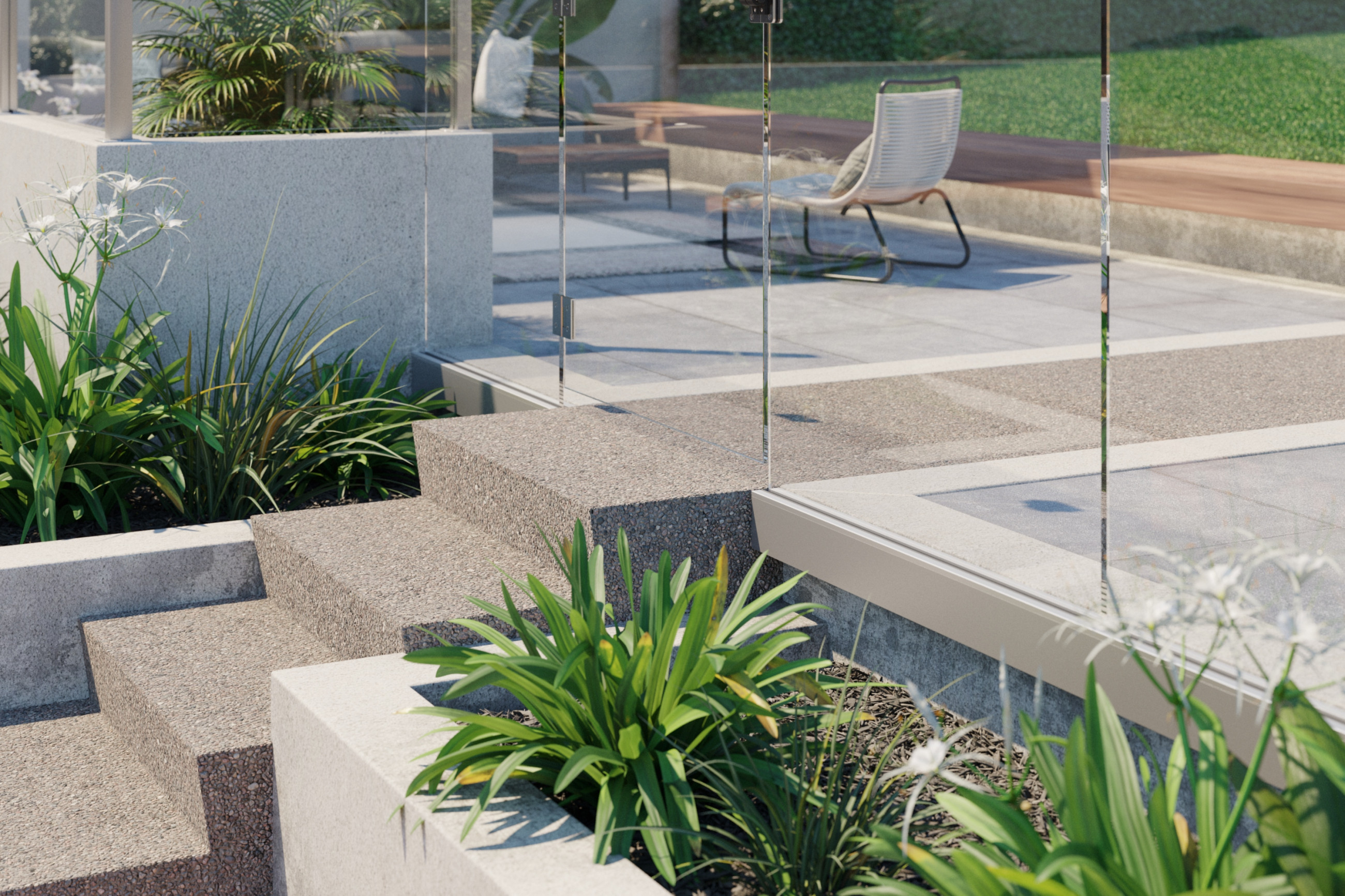

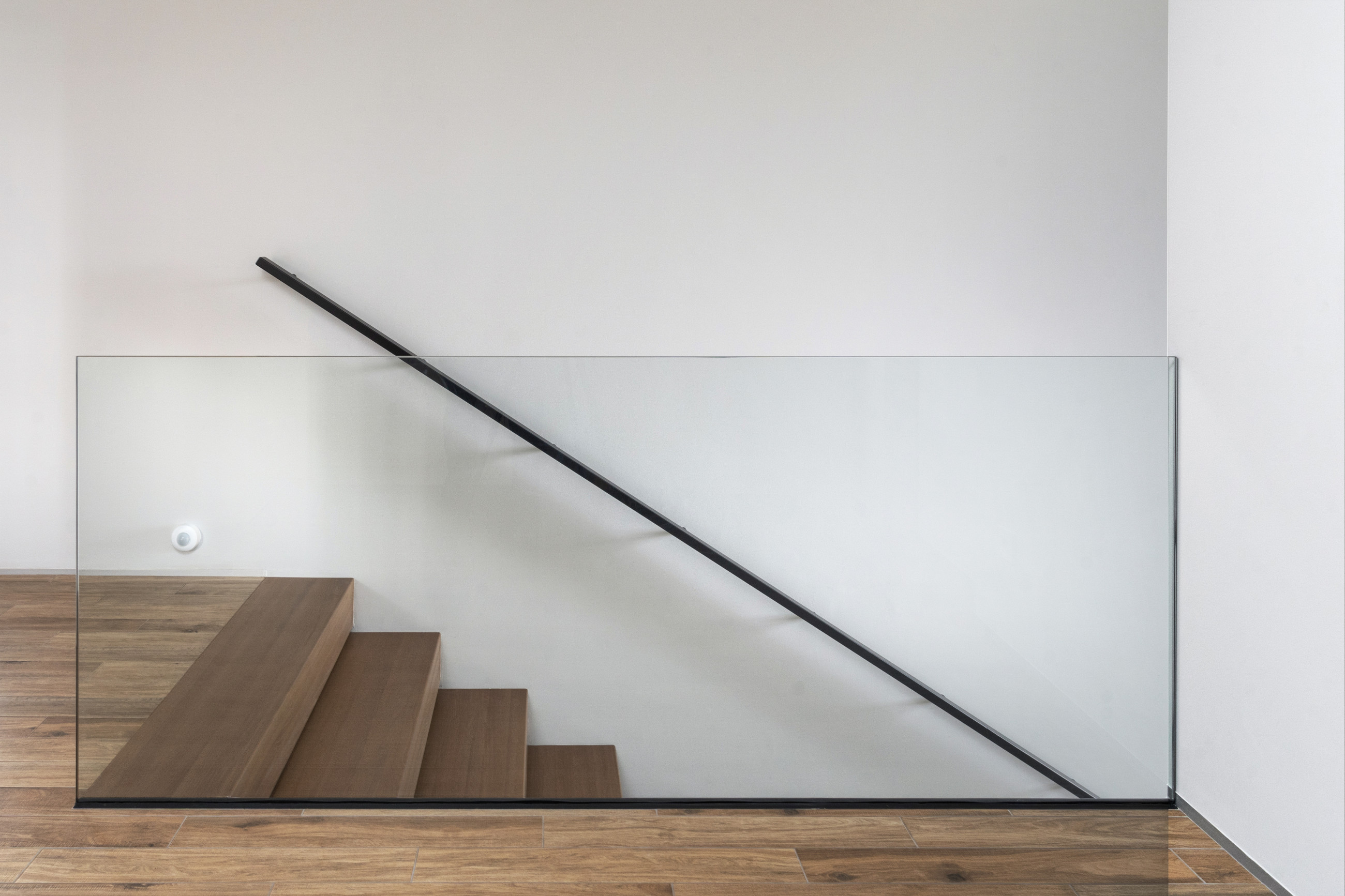

Ideal for decks, balcony's, pool fences and stairs
Two fixing options - one sits on top of the balcony or deck (base fix) and the other attaches to the side of the balcony or deck (side fix)
10 year warranty - our Metroview® Channel balustrade system comes with the assurance of warranty on both the glass and hardware for 10 years.
Ask about Metro's EzyClean technology designed to repel dirt and grime from glass, making cleaning and maintenance effortless.
Technical specifications
Suitable for | Internal and external use Balustrades, stairs, pool fences Fixing - Side Fix & Base Fix Occupancy A, A Other, B,E, C3 |
Windzone | Balustrades/Stairs - Windzone 1m: Extra high Pool Fences - Windzone 1.2m Extra high |
Substrate | Timber / Steel / Concrete |
Available in | Edgeless - 17.52mm toughened sentry glass Edgecap Top Rail - 12mm clear toughened glass + 25mm stainless steel top rail |
Hardware Options & Material Finish |
|
Download CAD files
Download DWG and PDF detailing for Metroview® Channel Balustrade hardware systems here.
Timber - Channel Side Fixed
PDF files
Metroview Channel (side fixed) - Timber BN PDF
Metroview Channel (side fixed) - Timber CS PDF
DWG files
Metroview Channel (side fixed) - Timber BN DWG
Metroview Channel (side fixed) - Timber CS DWG
Timber - Channel Base Fixed
PDF files
Metroview Channel (base fixed) - Single Timber PDF
Metroview Channel (base fixed) - Triple Timber PDF
DWG files
Concrete - Channel Side Fix
PDF files
Metroview Channel (side fixed) - Concrete M10 PDF
Metroview Channel (side fixed) - Concrete M12 PDF
DWG files
Metroview Channel (side fixed) - Concrete M10 DWG
Metroview Channel (side fixed) - Concrete M12 DWG
Concrete - Channel Base Fix
PDF files
Metroview Channel (base fixed) - Concrete M10 PDF
Metroview Channel (base fixed) - Concrete M12 PDF
DWG files
Steel - Channel Side Fix
PDF & DWG files
Metroview Channel (side fixed) - Steel PDF
Metroview Channel (side fixed) - Steel DWG
Steel - Channel Base Fix
PDF & DWG files
