Metroview® Point Fix balustrades
The Metroview® Point Fix system provides a more traditional style, with impressive design versatility.
Its customisable fixing points offer flexibility, making it adaptable to a wide range of installation requirements

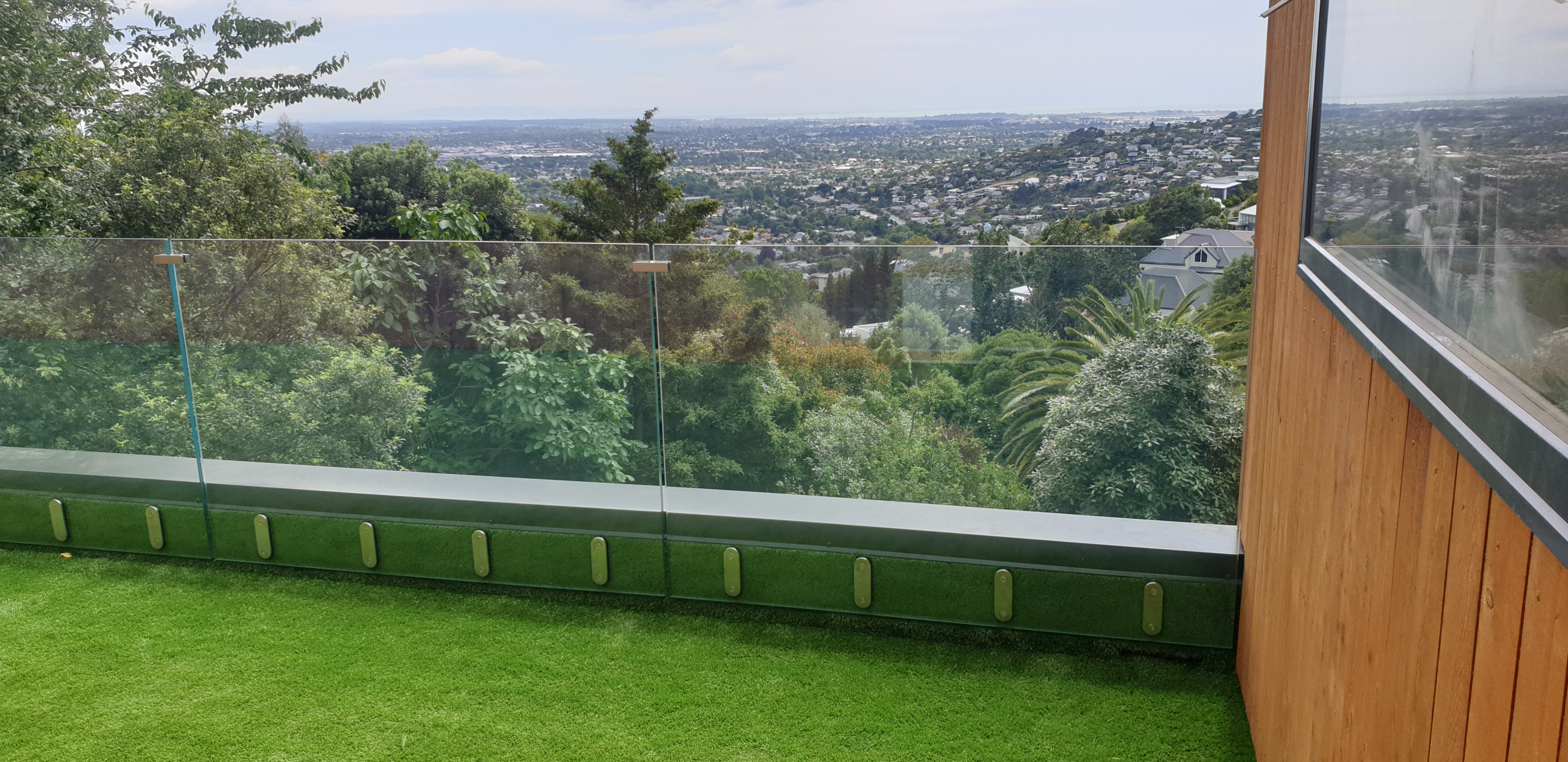

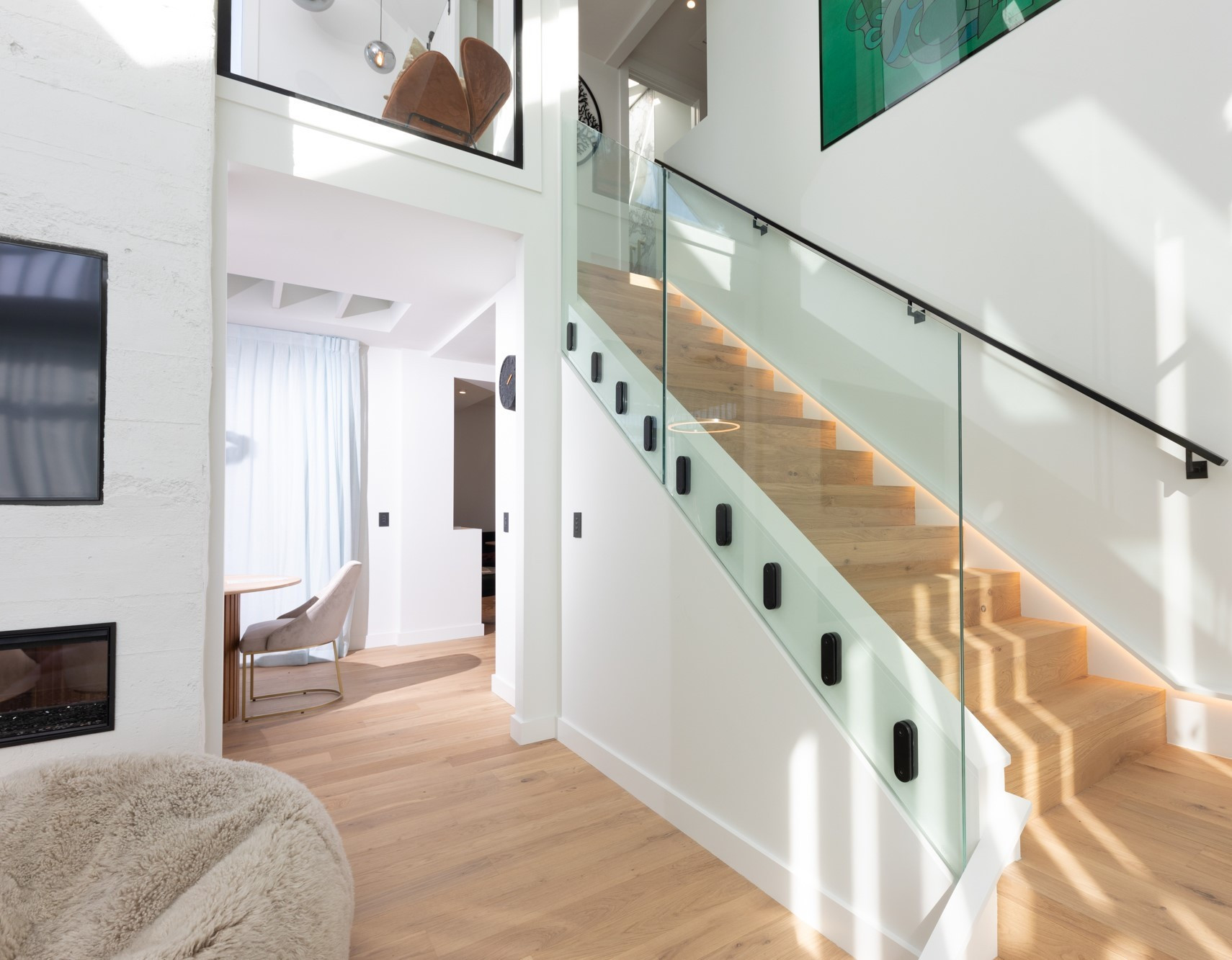

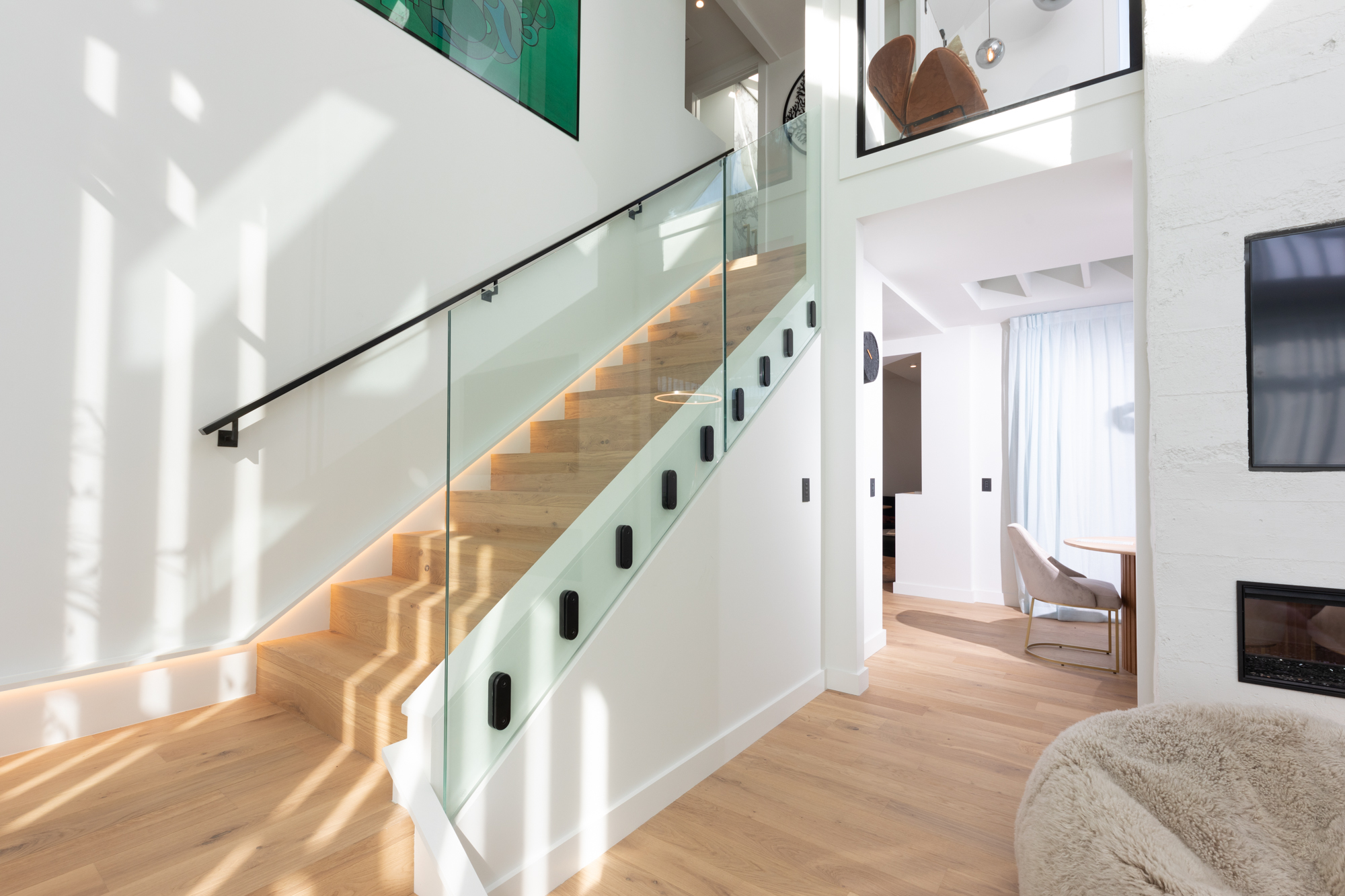

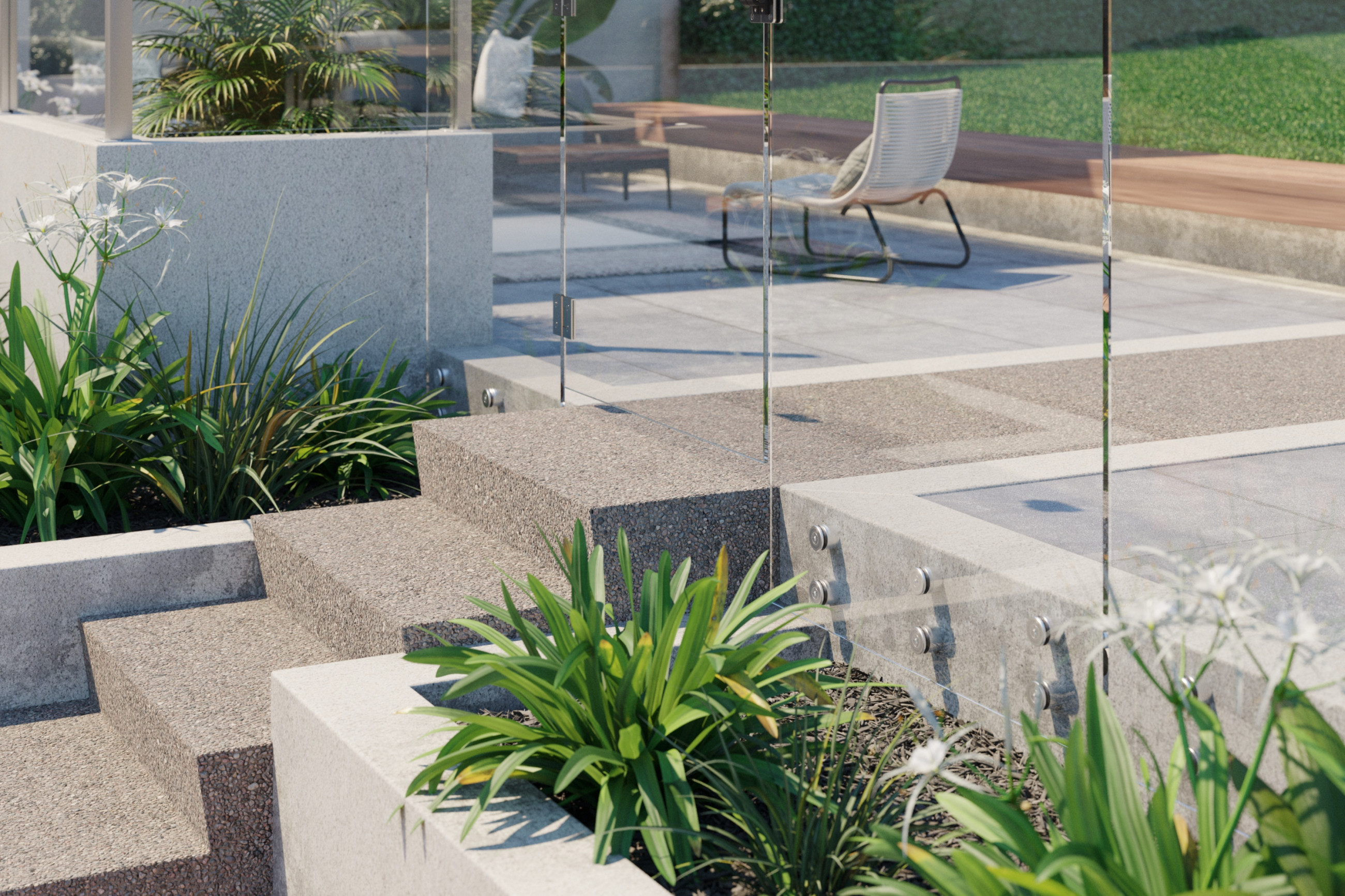

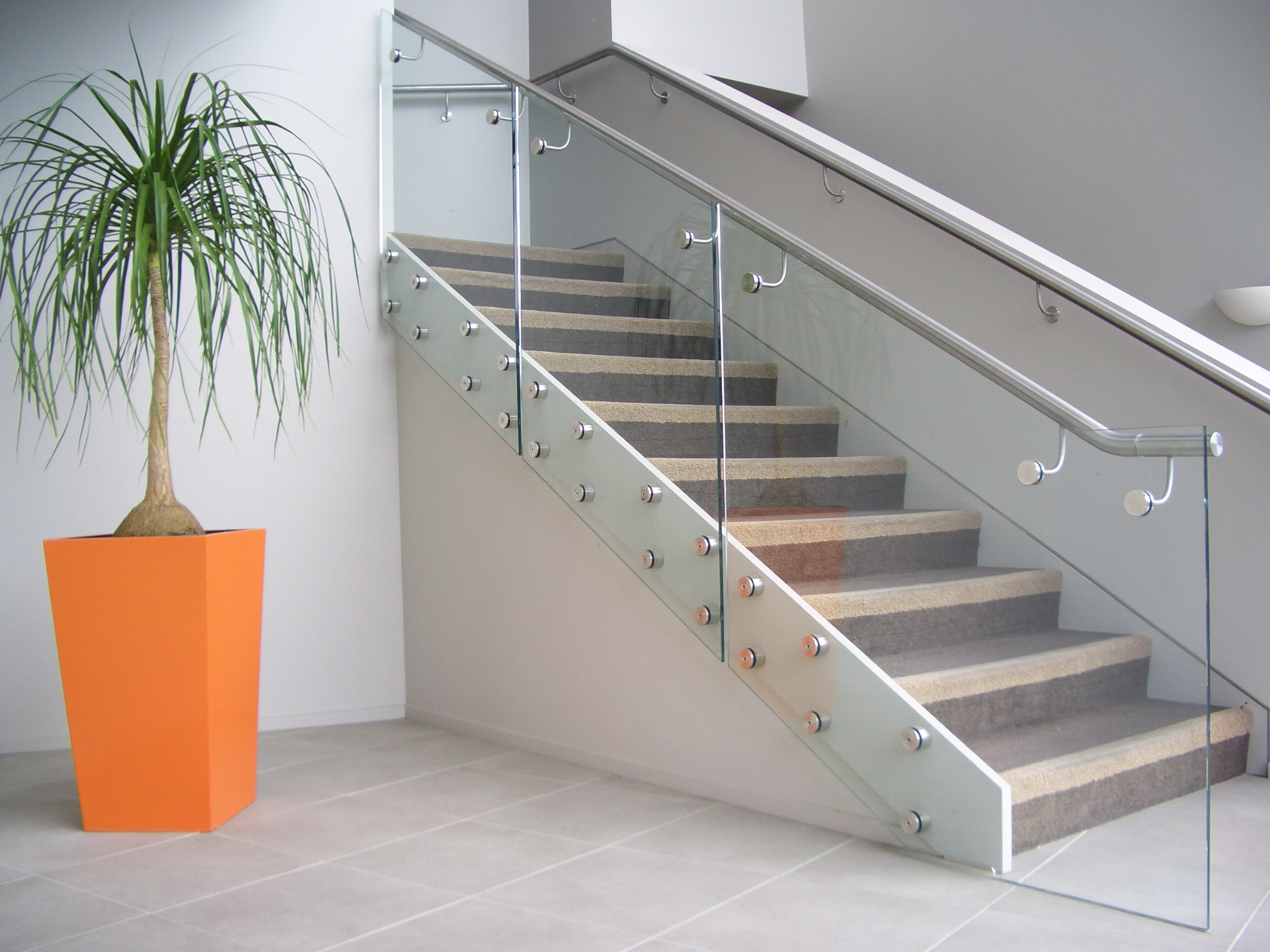

Ideal for balconies, decks, stairwells or free-standing pool fence applications (comes with matching gate hardware)

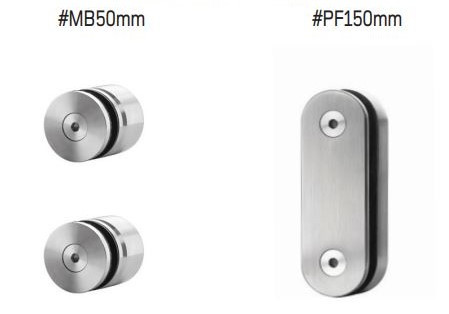

Available in two styles, double disk (MB50) or plate fix (PF150)
Hardware is side fixed only (not base fixed)
10 year warranty - Metroview® Point Fix balustrades come with the assurance of a 10 year warranty on both the glass and hardware
Ask about Metro's EzyClean technology designed to repel dirt and grime from glass, making cleaning and maintenance effortless.
Technical specifications
Suitable for | Internal and external use Balconies, decks, stairs, pool fences Fixing - Side Fix only Occupancy A, A Other, B,E, C3 |
Windzone | Balustrades/Stairs - Windzone 1m: Extra high Pool Fences - Windzone 1.2m Extra high |
Substrate | Timber / Steel / Concrete (Point Fix MB50 is also suited for reinforced block masonry) |
Available in | Edgeless - 17.52mm toughened sentry glass Edgecap Top Rail -12mm clear toughened glass + 25mm stainless steel top rail |
Hardware Options & Material Finish |
|
CAD downloads
Download DWG and PDF detailing for Metroview® Point Fix Balustrade hardware systems here.
Timber - MB50 Double Disc
PDF files
PointFix MB50 - Timber RN Install Detail PDF
PointFix MB50 - Timber LS Install Detail PDF
DWG files
PointFix MB50 - Timber RN Install Detail DWG
PointFix MB50 - Timber LS Install Detail DWG
Timber - PF150 Plate Fix
PDF files
PointFix PF150 - Timber BN M10 Install Detail PDF
PointFix PF150 - Timber CS M10 Install Detail PDF
DWG files
Concrete - MB50 Double Disc
PDF & DWG files
PointFix MB50 - Concrete RA Install Detail PDF
PointFix MB50 - Concrete RA Install Detail DWG
Concrete - PF150 Plate Fix
PDF files
PointFix PF150 - Concrete M10 RA Install Detail PDF
PointFix PF150 - Concrete M12 RA Install Detail PDF
DWG files
Steel - MB50 Double Disc
PDF files
PointFix MB50 - Steel (open) RN Install Detail PDF
PointFix MB50 - Steel (hollow) RN Install Detail PDF
DWG files
PointFix MB50 - Steel (open) RN Install Detail DWG
PointFix MB50 - Steel (hollow) RN Install Detail DWG
Steel PF150 - Plate Fix
PDF files
PointFix PF150 - Steel (open) M10 BN Install Detail PDF
PointFix PF150 - Steel (open) M12 BN Install Detail PDF
PointFix PF150 - Steel (hollow) M10 BN Install Detail PDF
PointFix PF150 - Steel (hollow) M12 BN Install Detail PDF
DWG files
PointFix PF150 - Steel (open) M10 BN Install Detail DWG
PointFix PF150 - Steel (open) M12 BN Install Detail DWG
