Hinged & Pivot Doors
Ozone Plus EN3
(Standard strength hydraulic patch)
Ozone Plus is the latest and one of the most innovative Bottom Patch fittings for frameless glass doors that comes with an in-built hydraulic system. The products under this range do not require any cavity to be made on the floor for installation. Hence, no digging, no cutting of the floor is required, making the installation quick & easy.
The Ozone Hydraulic Patch Fitting is surface mounted directly to the floor making it easy to install and thus a more cost-effective option for doors. Direct mounting to the floor is done with an adjustable base plate and this removes the need for pre-casting or cutting floor spring boxes, which is a slow messy process creating concrete dust and potentially weakening the floor slab.
The Ozone’s innovation is in the hydraulic closer mechanism which fits within the patch fitting and allows closing adjustment like a floor spring. The closer mechanism can be non hold open or be 90-degree hold open. The patch fitting is slightly larger than a normal patch fitting at 190 x 70mm but does not look out of place when used in typical frameless glass entry. The patch fitting comes with a 304 satin stainless steel covers for internal use.
Suitable for
The Ozone Hydraulic Patch Fitting is suitable for internal doors up to 1000mm wide made from 8 to 12mm TEMPAFLOAT® Toughened Safety Glass (TSG) up to 100kg maximum weight. For internal applications only.

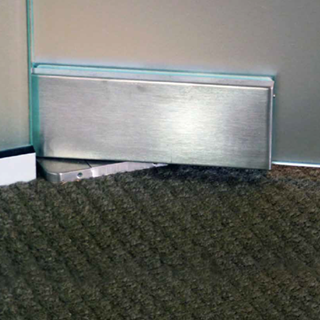

Ozone Plus EN5
(High strength hydraulic patch)
Ozone Plus is the latest and one of the most innovative Bottom Patch fittings for frameless glass doors that comes with an in-built hydraulic system. The products under this range do not require any cavity to be made in the floor for installation. Hence, no digging, no cutting of the floor is required, making the installation quick & easy.
The Ozone Hydraulic Patch Fitting is surface mounted directly to the floor making it easy to install and thus a more cost-effective option for doors. Direct mounting to the floor is done with an adjustable base plate and this removes the need for pre-casting or cutting floor spring boxes, which is a slow messy process creating concrete dust and potentially weakening the floor slab. The Ozone’s innovation is in the hydraulic closer mechanism which fits within the patch fitting and allows closing adjustment like a floor spring. The closer mechanism can be non hold open or be 90-degree hold open.
The Ozone HS patch fitting is slightly larger than a normal ozone patch fitting and is 196 x 80mm, but does not look out of place when used in typical frameless glass entry. The patch fitting comes with 316 satin stainless steel covers.
Suitable for
The Ozone Hydraulic Patch Fitting is suitable for internal up to 1250mm wide maximum and external doors up to 1000mm wide maximum, made from 10 to 15mm TEMPAFLOAT® Toughened Safety Glass (TSG) up to 100kg maximum weight. For internal applications only.
Dormakaba floor springs
(BTS84, BTS75 (EN1-4), BTS84 (EN2, EN4), RTS85 (Transom Concealed Door Closer) (EN1-4)
Whether standard, narrow or wide, whether LH, RH, or single or double action – Dormakaba BTS 80 and BTS 75 door springs are designed for all types of door. A comprehensive program of accessories ensures that they can be used successfully with a wide variety of door constructions and floor coverings. Thanks to a wide range of functions, which can be individually selected to suit different requirements, Dormakaba BTS 80 and BTS 75 floor springs offer maximum reliability and quality.
