SunX™ Reflect - Reflective glass with solar control
SunX™ Reflect Low E - double glazing
Glass with an elegant, reflective appearance for privacy - plus the benefit of solar control
New from Metro Glass, SunX™ Reflect Low E has replaced Stopsol Classic
SunX™ Reflect has a beautiful, reflective exterior appearance - perfect for creating privacy
Up to 61% better heat retention than standard double glazing
Reduces solar heat by up to 71%* compared to standard double glazing, great for homes in warmer regions with a lot of sunshine
The reflective exterior not only provides privacy, but helps protect you from the sun’s glare, letting in 31% of visual light.
H1 compliant across all zones (subject to spacer width)
Note: our double glazing range can be combined with laminate or obscured glass for improved acoustic or UV protection. Whatever your requirements are, we can tailor a solution for your home.
SunX™ Reflect Low E double glazing - performance data
Make-up mm | Heat Loss | Visibility | Heat Gain
| Fading | ||
|---|---|---|---|---|---|---|
Ug U Value | VLT Visible Light Transmission | VLR-E External Reflectance | SF Solar Factor (g) | LSG Selectivity | Tdw-ISO Damaged | |
4-8-4 | 1.7 | 31% | 45% | 22% | 1.41 | 0.27 |
4-10-4 | 1.4 | 31% | 45% | 22% | 1.41 | 0.27 |
4-12-4 | 1.3 | 31% | 45% | 22% | 1.41 | 0.27 |
4-14-4 | 1.1 | 31% | 45% | 22% | 1.41 | 0.27 |
4-16-4 | 1.1 | 31% | 45% | 22% | 1.41 | 0.27 |
4-18-4 | 1.1 | 31% | 45% | 22% | 1.41 | 0.27 |
View technical data for our double glazing range here.
SunX™ Reflect Performance
SunX™ Reflect Low E Double Glazing units have argon filled thermal spacers. The data shown is based on a make-up of 4-14-4.
U-value (based on 4-14-4)
1.1
Visible Light Transmission (VLT)
31%
Solar Factor (SF)
22%
Fading Protection (Tdw-ISO)
0.27
Compare Performance
To help you select the right double glazing glass, this table helps you assess the performance of our Low E range, compared to standard double glazing.
U VALUE (MAKE-UP OF 4-14-4)
Insulation value, lower is better
SOLAR FACTOR (SF)
Lower means less solar heat
VISUAL LIGHT TRANSMISSION (VLT)
Higher means more natural light
FADING PROTECTION (TDW-ISO)
Lower means better fading protection
COLOUR HUE

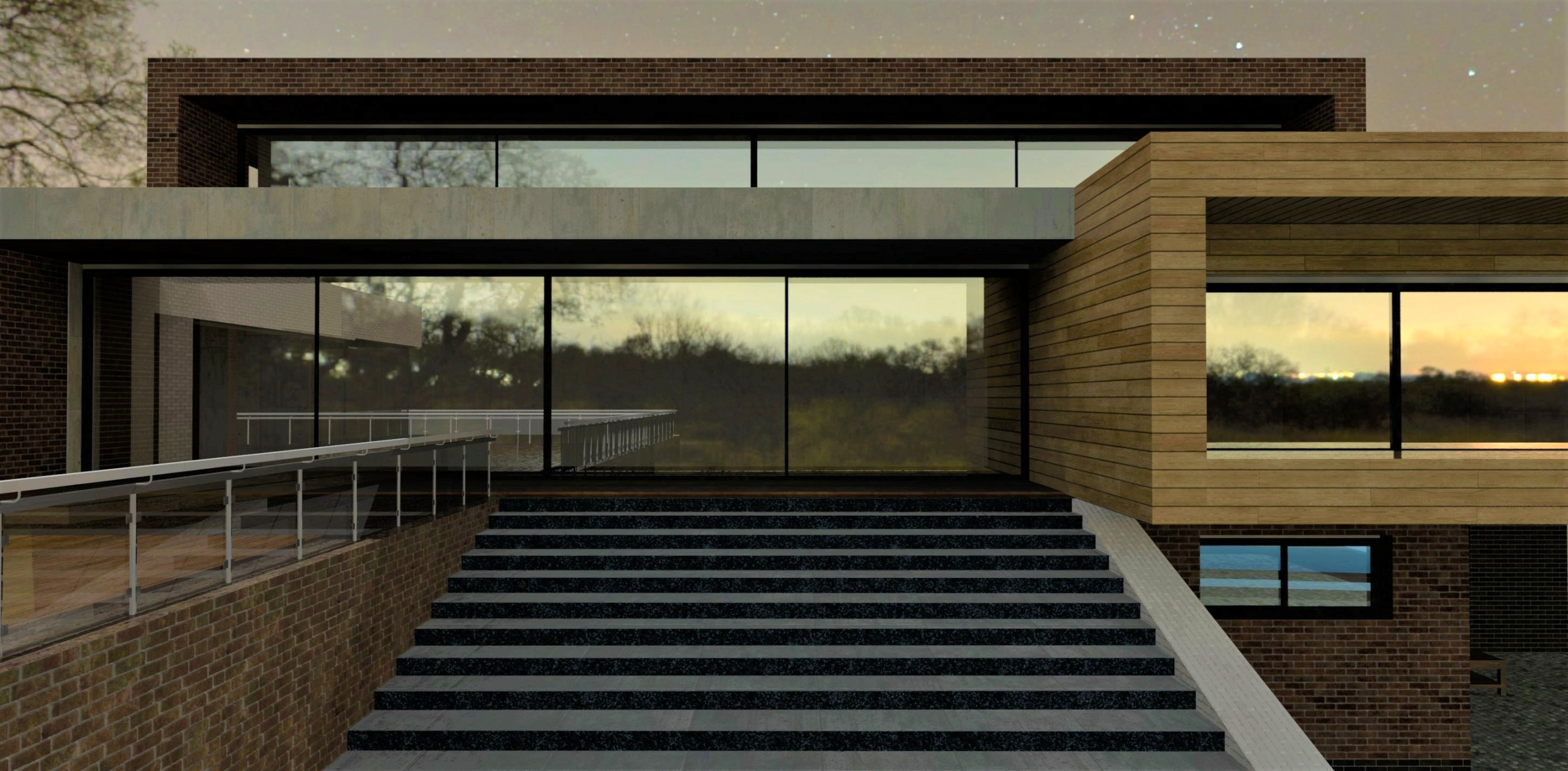

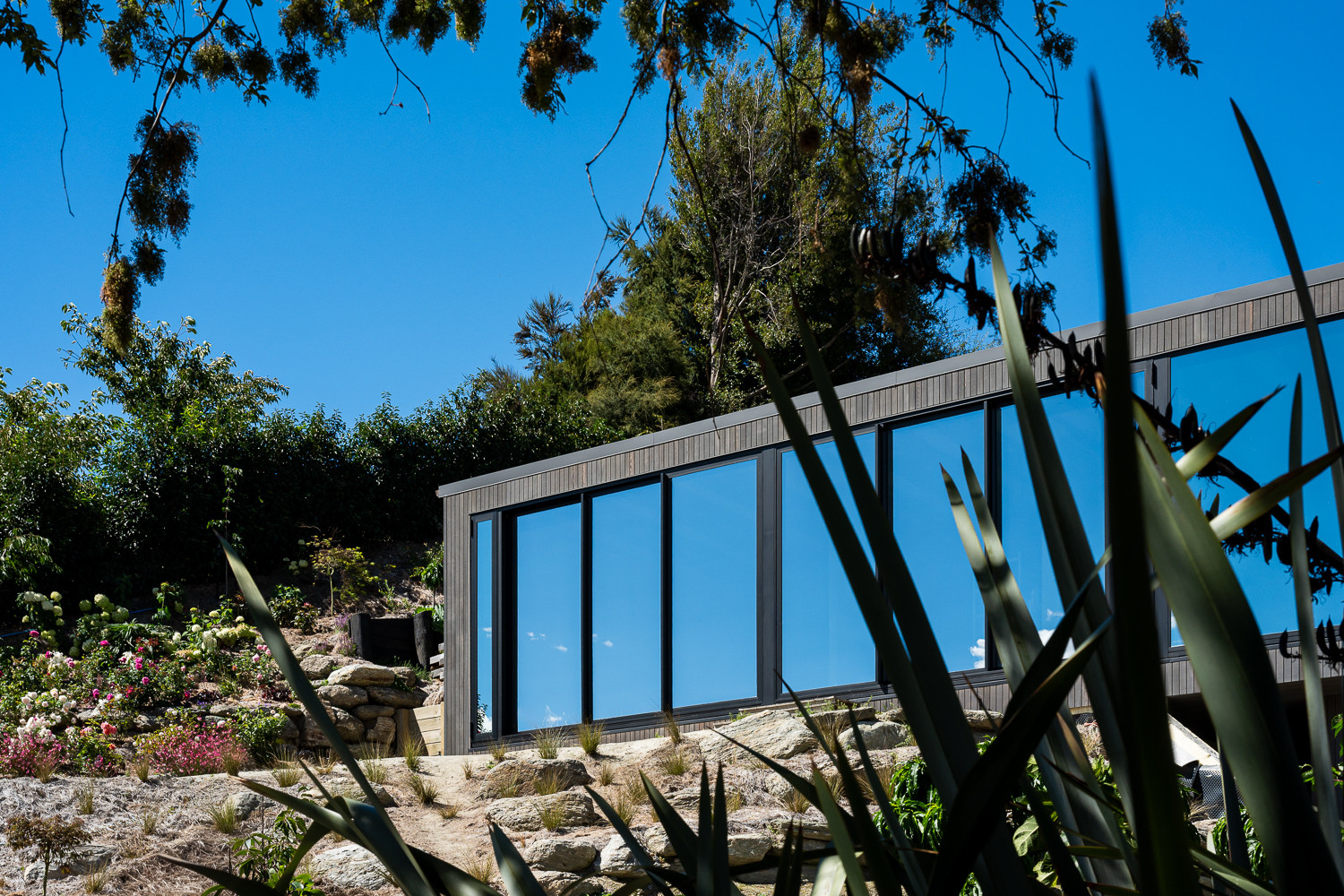

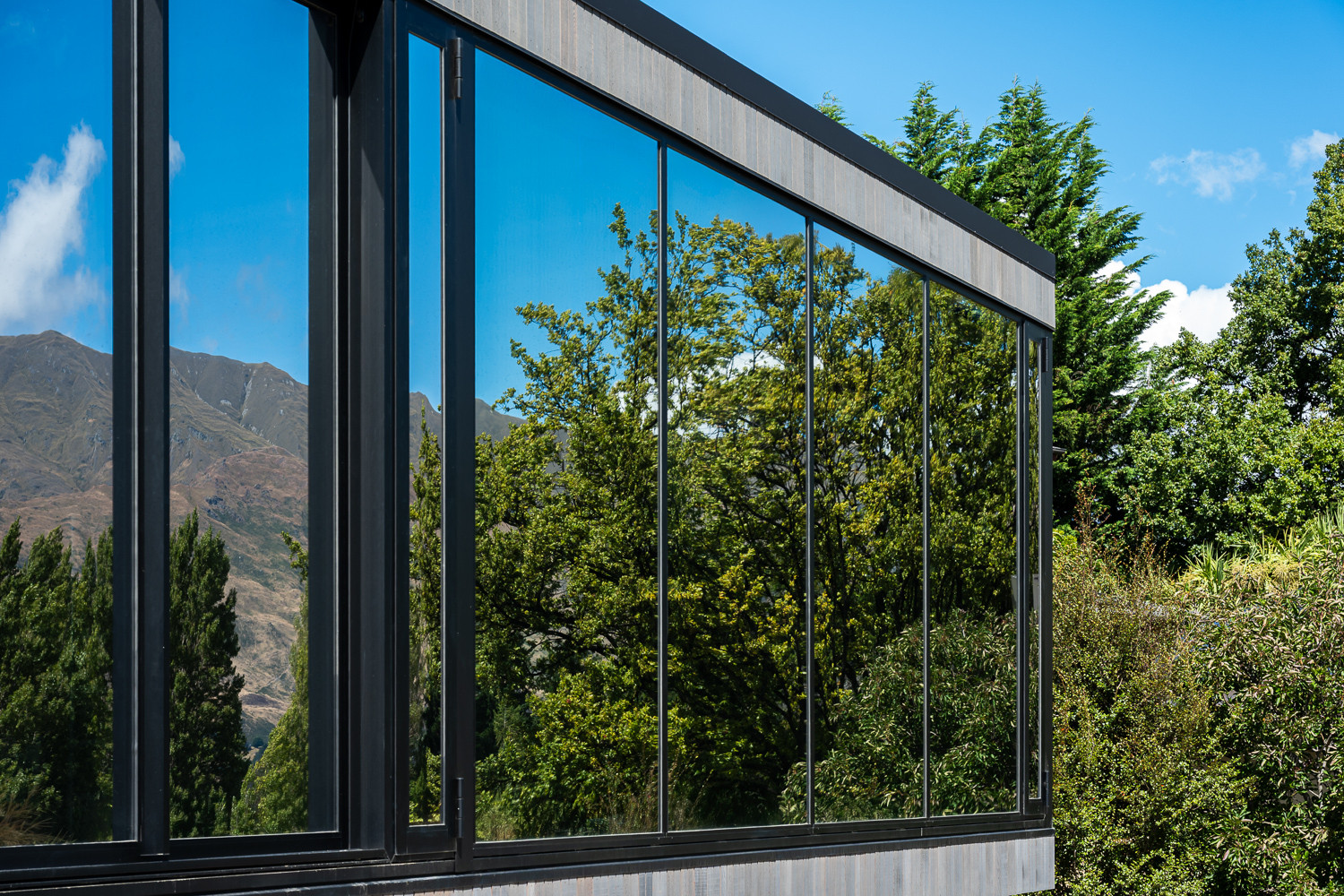

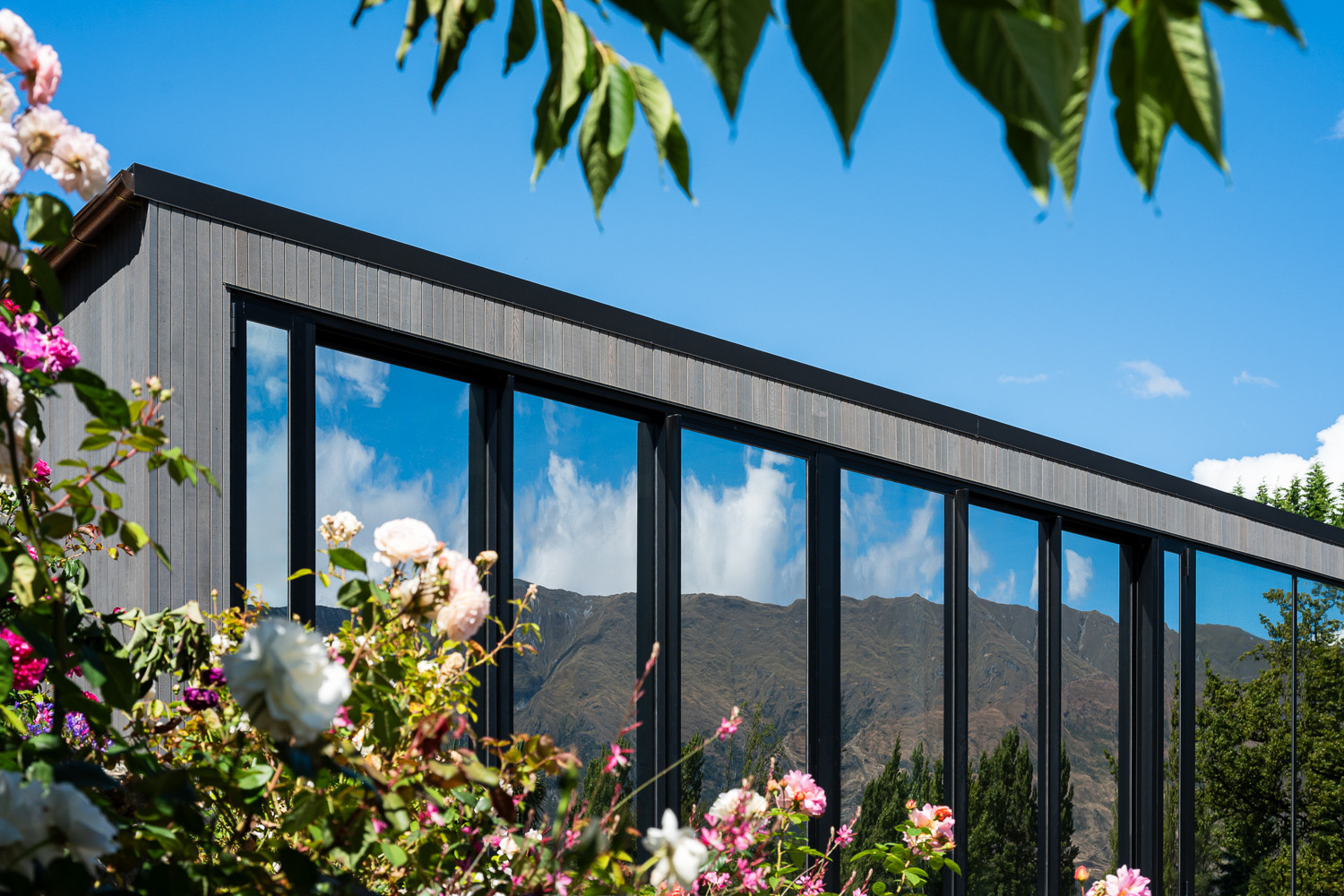

Gallery - SunX Reflect™
